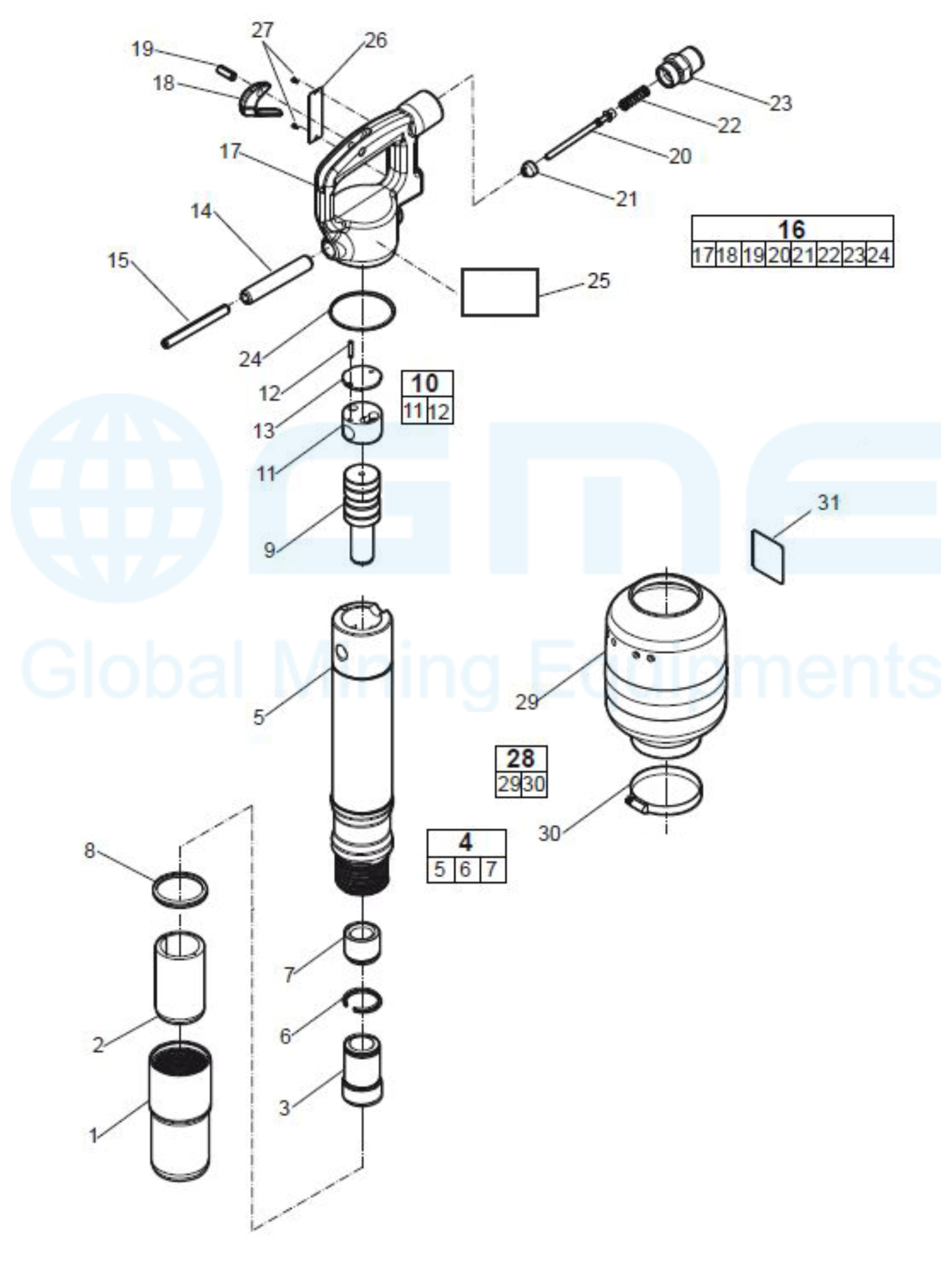

| SN. |
OEM Part No |
Part No. |
Description English |
Qty. |
| 1 |
3310 1137 00 |
G3310 1137 00 |
Cap |
1 |
| 2 |
3310 0705 00 |
G3310 0705 00 |
Buffer, red, Hexagon 22 x 82.5 mm, 7/8 x 31/4 in |
1 |
| 3 |
3310 1316 00 |
G3310 1316 00 |
Chuck, Hexagon 22 x 82.5 mm, 7/8 x 31/4 in. |
1 |
| 4 |
3310 1282 80 |
G3310 1282 80 |
Cylinder, complete |
1 |
| 5 |
3310 1282 00 |
G3310 1282 00 |
Cylinder |
1 |
| 6 |
3310 0871 00 |
G3310 0871 00 |
Locking ring |
1 |
| 7 |
3310 0870 00 |
G3310 0870 00 |
Intermediate part |
1 |
| 8 |
0663 2137 00 |
G0663 2137 00 |
O-ring, 49.2 x 5.7 mm (70 SHORE), 1.94 x 0.22 in. |
1 |
| 9 |
3310 1283 00 |
G3310 1283 00 |
Piston |
1 |
| 10 |
3310 1285 80 |
G3310 1285 80 |
Cover, complete |
1 |
| 11 |
3310 1285 00 |
G3310 1285 00 |
Cover |
1 |
| 12 |
0106 0951 11 |
G0106 0951 11 |
Grooved pin |
1 |
| 13 |
3310 1286 00 |
G3310 1286 00 |
Main valve |
1 |
| 14 |
0108 1691 55 |
G0108 1691 55 |
Spring pin, 16 x 95 mm |
1 |
| 15 |
0108 1691 64 |
G0108 1691 64 |
Spring pin, 10 x 95 mm |
1 |
| 16 |
3310 1287 81 |
G3310 1287 81 |
Backhead, complete |
1 |
| 17 |
3310 1287 00 |
G3310 1287 00 |
Backhead |
1 |
| 18 |
3310 1288 00 |
G3310 1288 00 |
Trigger |
1 |
| 19 |
0108 1355 00 |
G0108 1355 00 |
Spring pin, Ø8 x 24 mm, 0.31 x 0.94 in. |
1 |
| 20 |
3310 1281 00 |
G3310 1281 00 |
Valve stem |
1 |
| 21 |
3310 1135 00 |
G3310 1135 00 |
Inlet valve |
1 |
| 22 |
3310 1130 00 |
G3310 1130 00 |
Spring |
1 |
| 23 |
3310 1131 00 |
G3310 1131 00 |
Nipple |
1 |
| 24 |
0663 6137 00 |
G0663 6137 00 |
O-ring, 64.5 x 3 mm (70 SHORE), 2.54 x 0.12 in. |
1 |
| 25 |
3310 1602 00 |
G3310 1602 00 |
Safety label "Read instructions |
1 |
| 26 |
|
|
Data plate |
1 |
| 27 |
0244 4144 00 |
G0244 4144 00 |
Screw |
2 |
| 28 |
3310 1284 80 |
G3310 1284 80 |
Silencer, Complete |
1 |
| 29 |
3310 1284 00 |
G3310 1284 00 |
Silencer |
1 |
| 30 |
0347 6114 00 |
G0347 6114 00 |
Hose clamp |
1 |
| 31 |
|
|
Sound power label |
1 |
