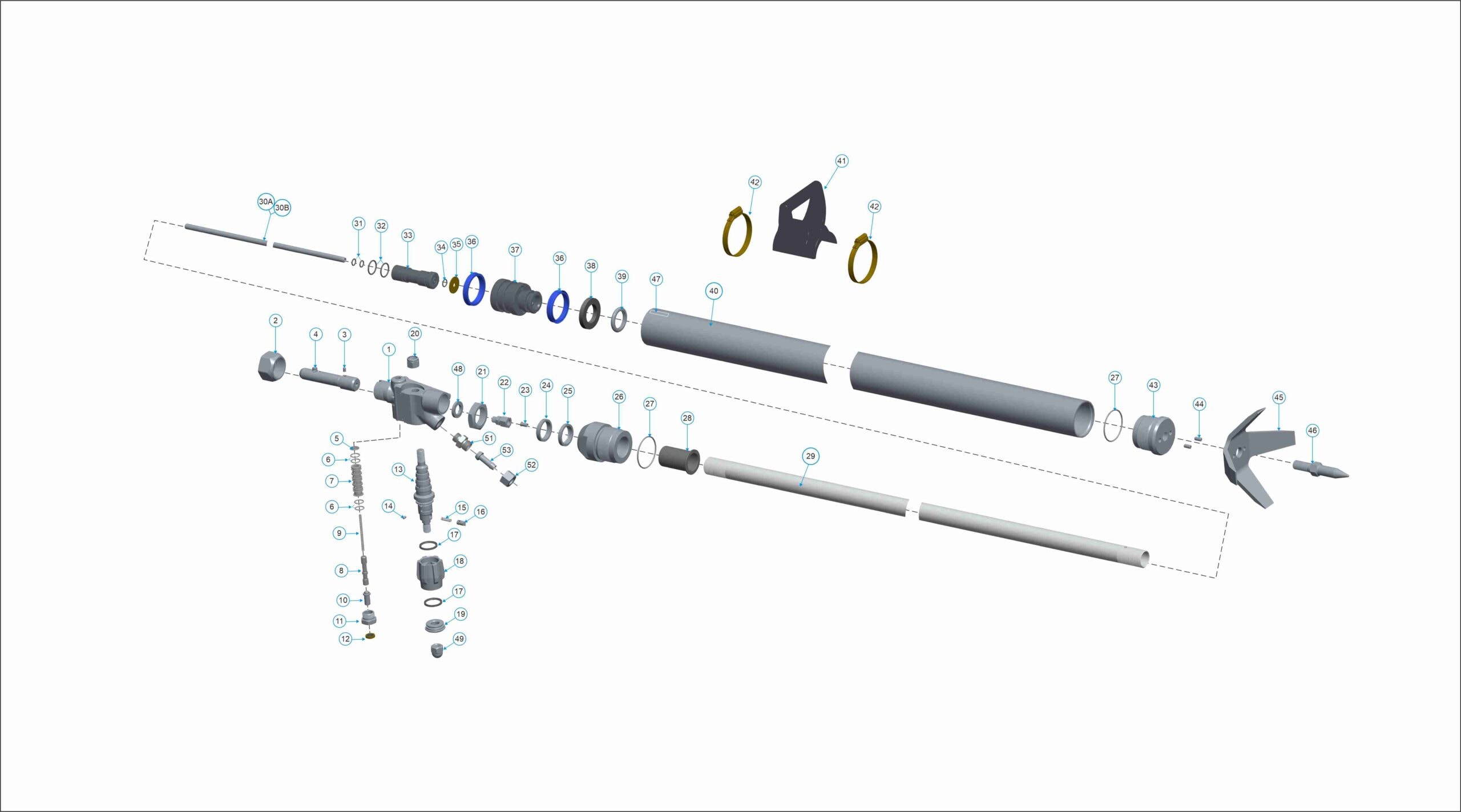

Exploded View - gmedrills

SNOEM Part NoPart No.DescriptionsQty.
13115 3001 00G3115 3001 00Valve Housing1
23115 2193 00G3115 2193 00Cap Nut1
30101 2311 00G0101 2311 00Cylindrical Pin1
43115 2999 00G3115 2999 00Piston Rod End1
53121 0724 00G3121 0724 00Washer1
3121 0726 80G3121 0726 80Valve Complete1
60663 2124 00G0663 2124 00O-Ring4
73115 3162 00G3115 3162 00Valve Liner1
83121 0726 00G3121 0726 00Valve1
93121 0725 00G3121 0725 00Spring1
103122 0382 00G3122 0382 00Valve Pin1
113122 0383 00G3122 0383 00Adapter1
120665 9110 01G0665 9110 01Wiper1
133115 2998 00G3115 2998 00Hand Wheel Bracket1
143115 0506 00G3115 0506 00Pin1
153000 9140 04G3000 9140 04Pressure Spring1
163121 0799 00G3121 0799 00Detent Pin1
173115 0504 00G3115 0504 00Seal Kit2
183115 0505 00G3115 0505 00Control Knob1
193115 2195 00G3115 2195 00Washer1
200291 1128 25G0291 1128 25Lock Nut1
213115 2194 00G3115 2194 00Nut1
220580 0013 14G0580 0013 14Pipe Coupling1
230581 2025 13G0581 2025 13Insert Sleeve1
240665 9166 00G0665 9166 00Wiper1
253122 0176 00G3122 0176 00Seal1
263115 2567 00G3115 2567 00Guide Socket1
270663 6137 00G0663 6137 00O-Ring2
283122 0178 00G3122 0178 00Bushing1
29B3115 2181 05G3115 2181 05Piston Rod1
30B3115 3000 02G3115 3000 02Center Pipe1
310663 2118 00G0663 2118 00O-Ring2
320663 2128 00G0663 2128 00O-Ring2
333115 2292 00G3115 2292 00Insert1
340663 2120 00G0663 2120 00O-Ring1
353115 2569 00G3115 2569 00Washer1
363115 2105 00G3115 2105 00Seal2
373115 2336 00G3115 2336 00Piston1
383115 2310 00G3115 2310 00Damper1
393115 2311 00G3115 2311 00Brake Ring1
40B3115 2566 02G3115 2566 02Cyl. Barrel (GP 72D-1)1
413115 2198 00G3115 2198 00Handle1
420347 6116 00G0347 6116 00Hose Clip2
433115 2568 00G3115 2568 00End Piece1
440101 2357 00G0101 2357 00Cylindrical Pin2
453115 2954 00G3115 2954 00Support1
463115 2178 00G3115 2178 00Spike1
473115 2629 00G3115 2629 00Safety Label1
483177 0072 00G3177 0072 00Lock Washer1
493115 2996 00G3115 2996 00Cap Nut1
519000 0341 00G9000 0341 00Hexagonal Nipple1
529000 0331 00G9000 0331 00Cap Nut1
539000 0322 00G9000 0322 00Hose Nipple1
