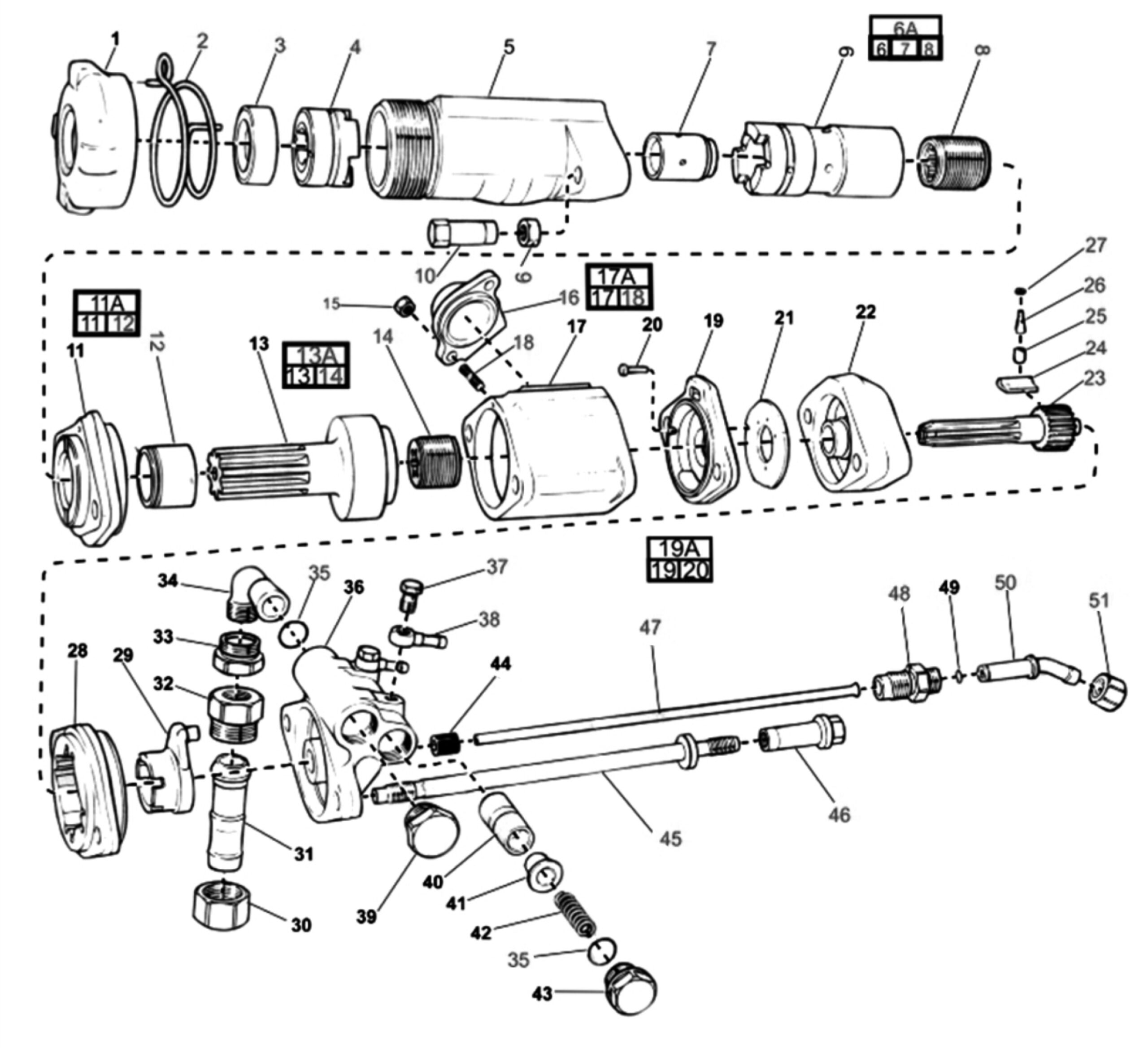

| SN | Part No | OEM Part No | Description | Qty |
| 1 | G3161 0230 | 3161 0230 | Bottom Cover | 1 |
| 2 | G3161 0993 | 3161 0993 | Lock Spring | 1 |
| 3 | G3161 0215 | 3161 0215 | Stop Ring (chuck Top Ring) | 1 |
| 4 | G3161 0216 | 3161 0216 | Rotation Chuck Small | 1 |
| 5 | G3161 0231 | 3161 0231 | Front Head | 1 |
| 6A | G3161 0328 80 | 3161 0328 80 | Rotation Chuck Com. [Item No.6,7 & 8] | 1 |
| 6 | G3161 0328 | 3161 0328 | Rotation Chuck | 1 |
| 7 | G3161 0218 | 3161 0218 | Rotation Chuck Bushing | 1 |
| 8 | G3161 0329 | 3161 0329 | Chuck Guide Nut | 1 |
| 9 | G3141 0072 | 3141 0072 | Nut | 2 |
| 10 | G3141 0071 | 3141 0071 | Nut | 2 |
| 11A | G3161 0819 80 | 3161 0819 80 | Intermediate Part Com.[Item No.11 &12] | 1 |
| 11 | G3161 0819 | 3161 0819 | Intermediate Part | 1 |
| 12 | G3161 0235 | 3161 0235 | Liner (bushing) | 1 |
| 13A | G3161 0307 80 | 3161 0307 80 | Piston Complete [Item No.13 &14] | 1 |
| 13 | G3161 0307 | 3161 0307 | Piston | 1 |
| 14 | G3161 0308 | 3161 0308 | Rifle Nut | 1 |
| 15 | G0291 1114 | 0291 1114 | Nut | 1 |
| 16 | G3115 0122 | 3115 0122 | Exhaust Guard | 1 |
| 17A | G3161 0524 80 | 3161 0524 80 | Cylinder Complete [Item No.17 &18] | 1 |
| 17 | G3161 0524 | 3161 0524 | Cylinder | 1 |
| 18 | G3161 0468 | 3161 0468 | Stud | 1 |
| 19A | G3141 0087 80 | 3141 0087 80 | Cover Complete [Item No.19 & 20] | 1 |
| 19 | G3141 0087 | 3141 0087 | Cover | 1 |
| 20 | G3141 0088 | 3141 0088 | Guide Pin | 1 |
| 21 | G3161 0333 | 3161 0333 | Main Valve | 1 |
| 22 | G3141 0090 | 3141 0090 | Rifle Bar Bearing | 1 |
| 23 | G3161 0369 | 3161 0369 | Rifle Bar | 1 |
| 24 | G3161 0370 | 3161 0370 | Pawl | 8 |
| 25 | G3141 0083 | 3141 0083 | Pawl Pin | 8 |
| 26 | G3115 0774 | 3115 0774 | Pawl Spring | 8 |
| 27 | G3161 0525 | 3161 0525 | Damper | 8 |
| 28 | G3161 0377 | 3161 0377 | Ratchet Box | 1 |
| 29 | G3161 0378 | 3161 0378 | Pawl Lifting Ring | 1 |
| 30 | G9000 0335 | 9000 0335 | Coupling Nut | 1 |
| 31 | G9000 0177 | 9000 0177 | Hose Nipple | 1 |
| 32 | G9000 0485 | 9000 0485 | Adapter | 1 |
| 33 | G3000 9922 | 3000 9922 | Adapter | 1 |
| 34 | G3161 0070 | 3161 0070 | Inlet Nipple | 1 |
| 35 | G0663 2132 | 0663 2132 | O' Ring | 2 |
| 36 | G3141 0093 | 3141 0093 | Back Head | 1 |
| 37 | G3161 0820 | 3161 0820 | Pressure Screw | 2 |
| 38 | G3161 0229 | 3161 0229 | Banjo Connection | 2 |
| 39 | G3161 0069 | 3161 0069 | Plug | 1 |
| 40 | G3141 0095 | 3141 0095 | Operating Piston | 1 |
| 41 | G3141 0096 | 3141 0096 | Spring Guide | 2 |
| 42 | G3141 0097 | 3141 0097 | Pressure Spring | 2 |
| 43 | G3141 0098 | 3141 0098 | Plug | 2 |
| 44 | G3121 0477 | 3121 0477 | Gasket | 1 |
| 45 | G3141 0070 | 3141 0070 | Side Bolt | 2 |
| 46 | G3141 0224 | 3141 0224 | Nut | 2 |
| 47 | G3161 0376 | 3161 0376 | Water Flushing Tube | 1 |
| 48 | G3161 0821 | 3161 0821 | Adapter | 1 |
| 49 | G0663 2124 | 0663 2124 | O' Ring | 1 |
| 50 | G3161 0822 | 3161 0822 | Hose Nipple | 1 |
| 51 | G3161 0823 | 3161 0823 | Coupling Nut | 1 |
