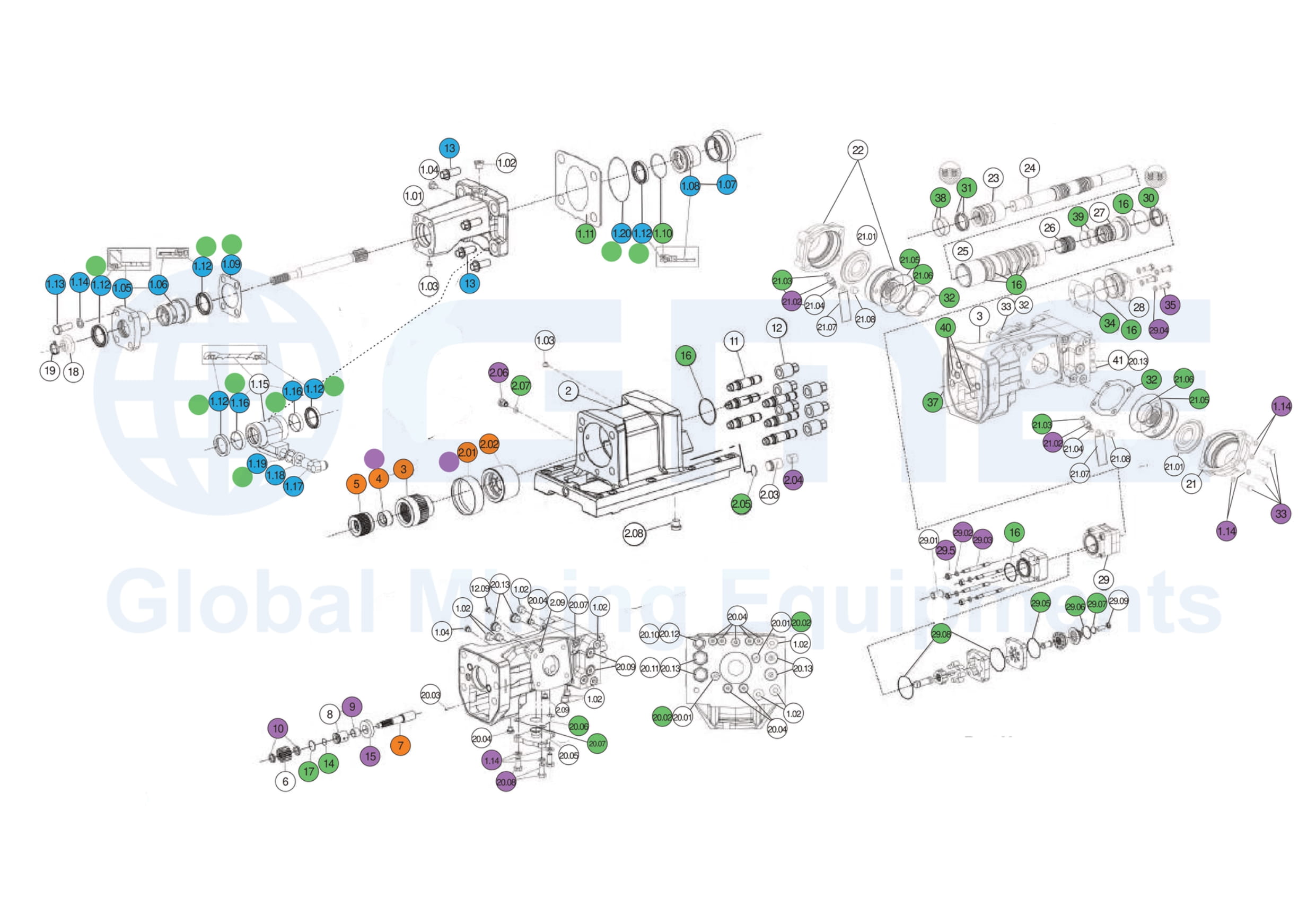

| Sl | Part No. | Description | Qty. |
| 1.01 | G550 056 39 | Frame | 1 |
| 1.02 | G881 140 79 | Plug | 12 |
| 1.03 | G865 683 09 | Plug | 2 |
| 1.04 | G550 093 63 | Plug | 2 |
| 1.05 | G152 744 08 | Cover, Front (- Incl. Parts 1.06) | 1 |
| 1.06 | G152 744 08 | Bearing Bushing | 1 |
| 1.07 | G152 747 98 | Bushing, Shank (- Incl. Parts 1.08) | 1 |
| 1.08 | G152 697 08 | Bushing | 1 |
| $* 1.09 | G150 809 18 | Plate, Gasket | 1 |
| 1.10 | G500 637 10 | O-Ring | 1 |
| 1.11 | G152 748 18 | Plate, Gasket | 1 |
| $* 1.12 | G872 189 39 | Seal, U | 5 |
| $# 1.13 | G442 218 50 | Hexagon Head Screw | 4 |
| $# 1.14 | G850 687 49 | Washer, Lock, Double | 15 |
| 1.15 | G152 473 28 | Seal Housing | 1 |
| $* 1.16 | G550 668 36 | Piston Rod Guide Ring | 1 |
| 1.17 | G550 056 76 | Adapter Assembly | 1 |
| 1.18 | G812 949 59 | Lock Nut | 1 |
| 1.19 | G500 668 36 | Bonded Seal | 1 |
| $* 1.20 | G800 816 79 | O-Ring | 1 |
| 2 | G550 045 50 | Gearbox | 1 |
| $# 2.01 | G152 711 08 | Bearing Bushing | 1 |
| 2.02 | G550 356 04 | Bearing Bushing | 1 |
| 2.03 | G551 714 41 | Bearing Assembly (- Incl. Parts 2.04) | 1 |
| 2.04 | G511 706 48 | Bearing Bushing | 1 |
| 2.05 | G522 107 40 | O-Ring | 1 |
| 2.06 | G550 036 03 | Screw | 1 |
| $ 2.07 | G801 802 69 | Bonded Seal | 1 |
| 2.08 | G871 692 89 | Plug | 5 |
| @ 3 | G550 577 98 | Bushing, Rotation | 1 |
| @ # 4 | G152 723 68 | Drill Sleeve | 1 |
| @ 5 | G505 008 28 | Driver (Bronze) | 1 |
| 6 | G154 194 08 | Gear Wheel | 1 |
| 7 | G154 217 48 | Shaft, Rotating | 1 |
| 8 | G550 037 82 | Housing Assembly | 1 |
| # 9 | G888 097 49 | Needle Bearing | 1 |
| 10 | G150 797 19 | Side Plate | 2 |
| 11 | G152 716 38 | Bolt, Special | 6 |
| 12 | G152 525 68 | Cap Nut | 6 |
| 13 | G550 034 00 | Screw | 4 |
| 14 | G887 946 09 | Seal, Shaft | 1 |
| 15 | G511 108 30 | Bearing, Ball, Deep Groove | 1 |
| * 16 | G800 658 09 | O-Ring | 9 |
| 17 | G853 575 89 | O-Ring | 1 |
| 18 | G047 689 68 | Guard | 1 |
| 19 | G280 678 90 | Clamp | 1 |
| 20 | G550 103 31 | Frame Assembly | 1 |
| 20.01 | G150 221 58 | Plug | 2 |
| 20.02 | G522 067 70 | O-Ring | 2 |
| 20.03 | G882 322 79 | Spring-Type Straight Pin | 2 |
| 20.04 | G881 139 09 | Plug | 10 |
| 20.05 | G152 538 58 | Plate | 1 |
| * 20.06 | G152 538 58 | Gasket Plate | 1 |
| * 20.07 | G818 735 39 | O-Ring | 1 |
| 20.08 | G800 537 39 | Hexagon Head Screw | 3 |
| 20.09 | G881 141 09 | Plug | 6 |
| 20.10 | G817 094 69 | Straight Thread Adapter | 1 |
| 20.11 | G816 768 29 | Straight Thread Adapter | 2 |
| 20.12 | G817 097 49 | Plug | 1 |
| 20.13 | G816 909 59 | Plug | 4 |
| 21 | G550 036 25 | Accumulator | 1 |
| 21.01 | G092 602 98 | Bladder | 1 |
| 21.02 | G807 590 69 | Valve | 2 |
| 21.03 | G869 733 29 | O-Ring | 2 |
| 21.04 | G851 682 19 | Protecting Cap | 2 |
| 21.05 | G522 134 90 | O-Ring | 2 |
| 21.06 | G819 532 09 | O-Ring | 2 |
| 21.07 | G151 548 58 | Tag | 2 |
| 21.08 | G085 370 18 | Protecting Cap | 2 |
| 22 | G550 036 27 | Accumulator | 1 |
| 23 | G152 715 08 | Bearing | 1 |
| 24 | G551 991 40 | Rock Drill Piston | 1 |
| 25 | G550 047 84 | Cylinder | 1 |
| 26 | G152 576 38 | Distributor | 1 |
| 27 | G550 023 18 | Bushing | 1 |
| 28 | G550 026 37 | Cover | 1 |
| 29.01 | G550 097 85 | Motor Assembly, Hydraulic | 1 |
| 29.01 | G150 800 78 | Thrust | 1 |
| 29.02 | G550 065 90 | Stud | 4 |
| * 29.03 | G851 068 09 | Double Lock Washer | 4 |
| 29.04 | G811 260 29 | Lock Nut | 4 |
| * 29.05 | G855 207 09 | O-Ring | 1 |
| 29.06 | G855 206 89 | O-Ring | 2 |
| * 29.07 | G814 872 89 | O-Ring | 1 |
| 29.08 | G550 091 04 | O-Ring | 1 |
| * 29.09 | G550 351 48 | Spring Washer | 1 |
| * 30 | G887 944 59 | Seal, Rod | 2 |
| * 31 | G887 945 89 | Seal, Rod | 2 |
| * 32 | G550 042 26 | Plate, Gasket | 2 |
| 33 | G802 198 29 | Hexagon Head Bolt | 8 |
| * 34 | G550 046 25 | Gasket | 1 |
| 35 | G800 470 59 | Hexagon Head Screw | 4 |
| 36 | G851 068 09 | Washer, Lock, Double | 4 |
| 37 | G550 152 17 | O-Ring | 1 |
| 38 | G801 368 49 | O-Ring | 2 |
| 39 | G550 091 05 | O-Ring | 2 |
| 40 | G808 788 39 | O-Ring | 3 |
| * 41 | G816 770 19 | Straight Thread Adapter | 2 |
| * 42 | G860 252 93 | Seal Kit | 1 |
| 42.01 | G500 501 98 | Kit Rotation MHD5 | 1 |
| 42.02 | GBG 008 008 65 | Service Kit, Flushing Head MHD5 | 1 |
| 42.03 | GBG 005 495 19 | Service Kit, Endurance Kit MHD5 | 1 |
